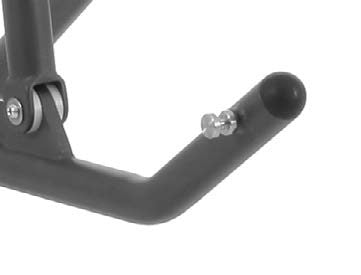

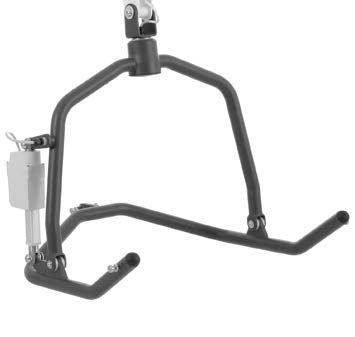

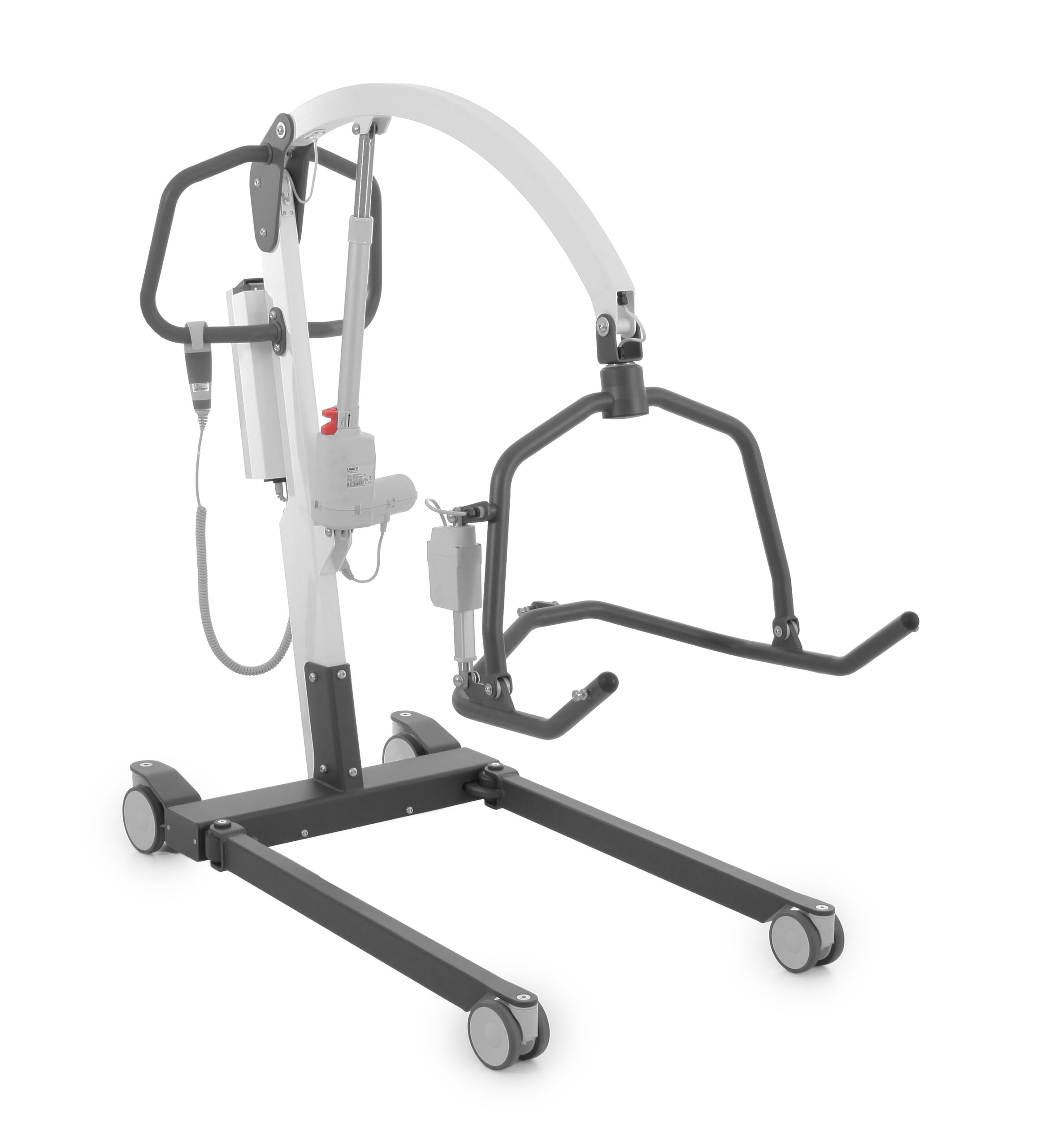

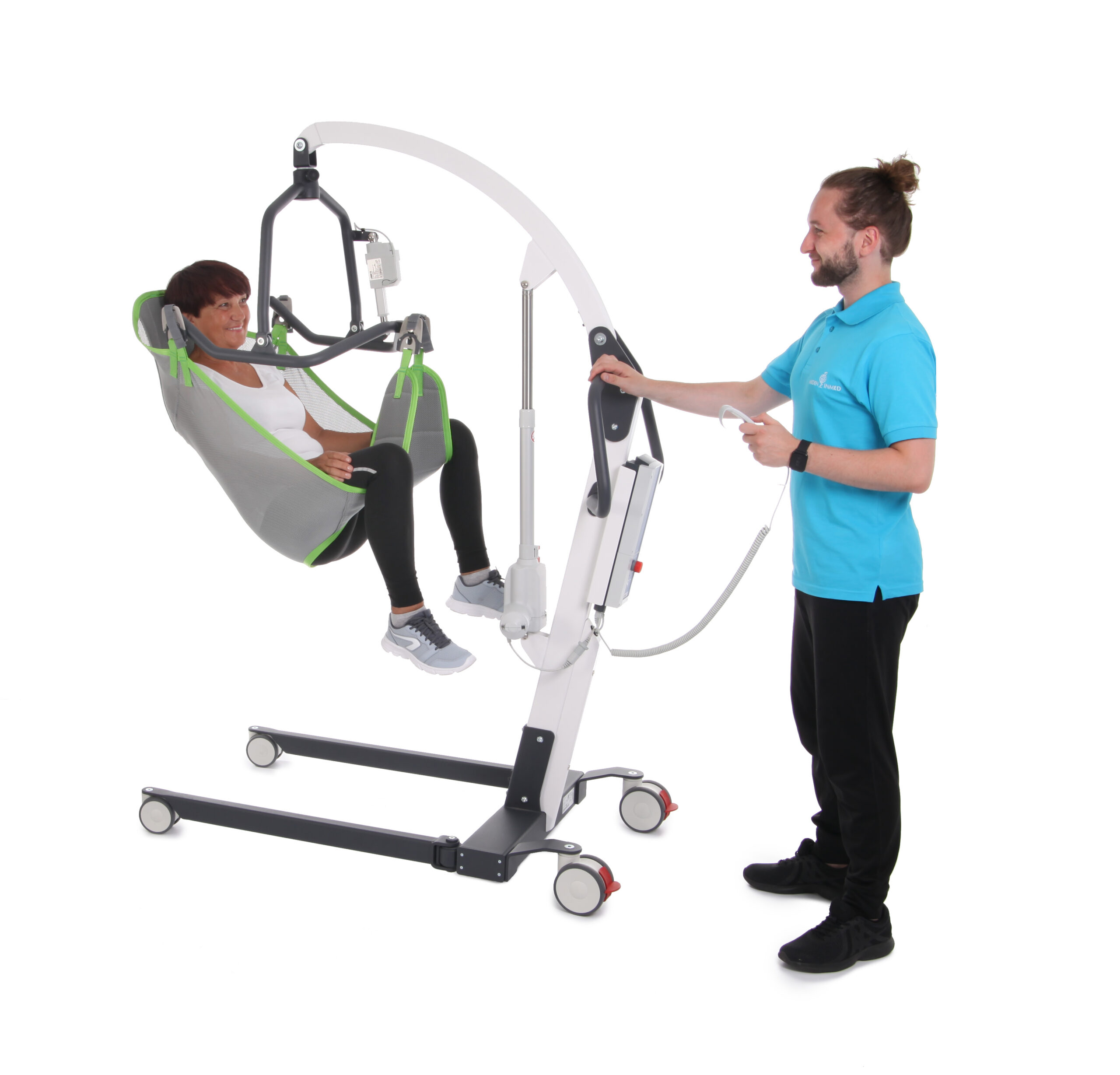

The Levitop Comfort is a passive hoist with a safe working load of 230kg. It has a powered patient positioning spreader bar. The spreader bar is compatible with all clip slings. It has a small footprint which makes it suitable for homes as well as hospital settings.
Technical data:
| Lenght [cm]: |
130 |
| Width [cm]: |
67 |
| Height [cm]: |
135 |
| Base width (min.) [cm]: |
52 / 67 |
| Base width (max.) [cm]: |
103 / 118 |
| Lifting range [cm]: |
68 / 196 |
| Base legs height [cm]: |
11,5 |
| Weight [kg]: |
66 |
| Max. lifting capacity [kg]: |
230 |
| 360° Rotating hanger: |
V |
| Battery capacity [Ah]: |
2,9 |
| Charger [V/Hz]: |
100-240 / 50 / 60
(wall charger) |
Emergency stop button/
manual lowering mechanism: |
V |
| Remote control functions: |
• up / down
• el. leg span adjustment
• sling bar up / down
• battery charge status
• service indicator
• overload indicator |
| Lifting speed without load (rising/lowering) [sec.]: |
36 / 34 |
| Turning radius (min./max.) [cm]: |
144 / 158 |
| Standard set: |
• lift
• power cord for internal charger
• manual |
| Additional accessories: |
sling to chose |
