Description

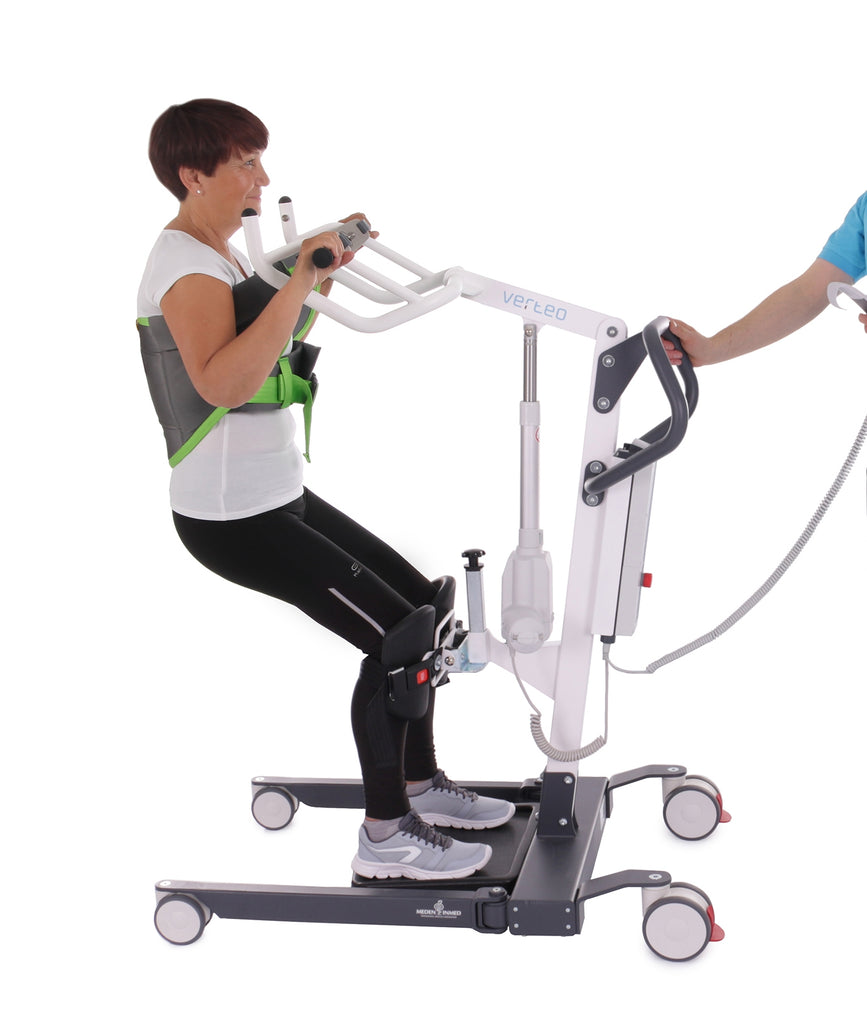

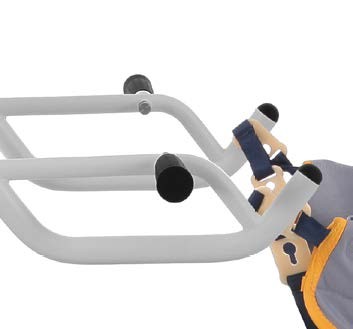

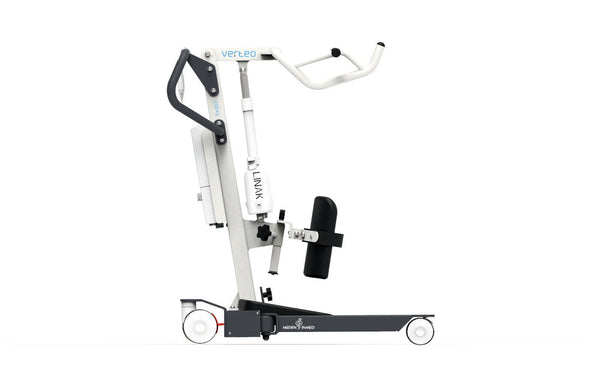

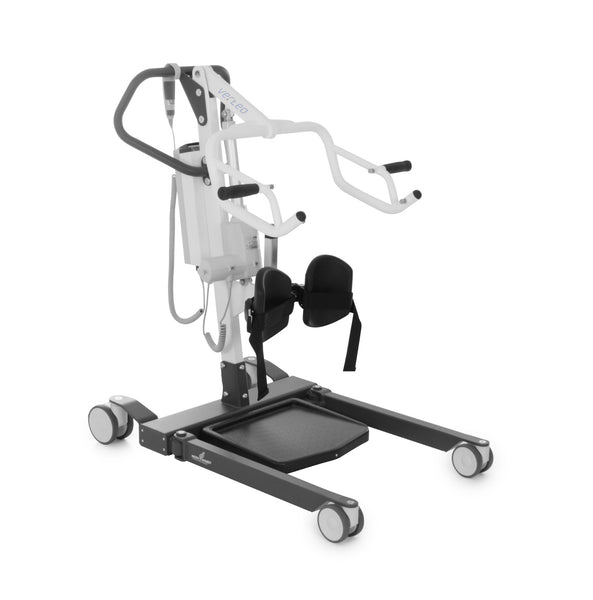

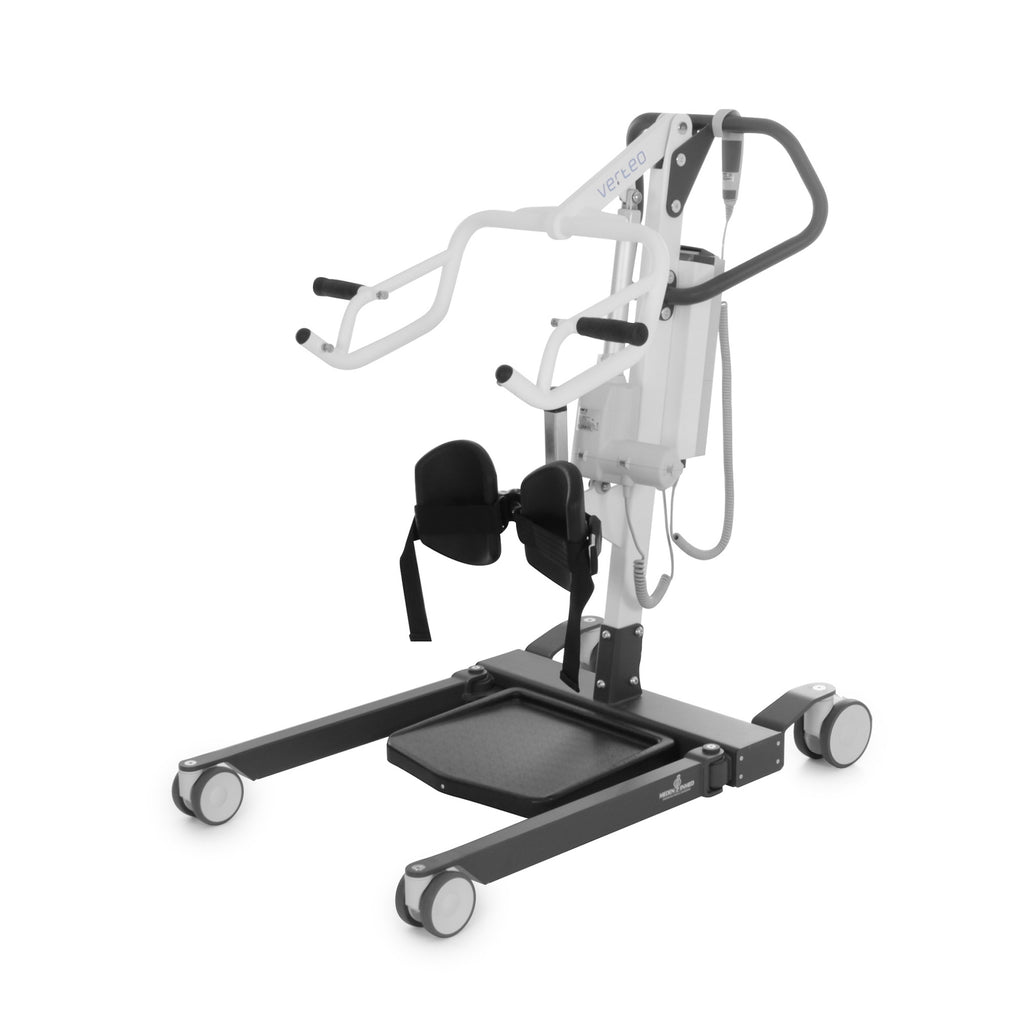

The Verteo is sit-to-stand lifter designed for patients who have difficulty standing up on their own from a seated position and is used to transfer a patient between seated surfaces. It has a safe working load of 230Kg. With its small foot print and powerful lifting weight it makes it suitable for home and acute settings. It is compatible with clip standing slings.
Technical data:
| Lenght [cm]: | 108 |
| Width [cm]: | 75 |
| Height [cm]: | 113 |
| Base width (min.) [cm]: | 51 / 66 |
| Base width (max.) [cm]: | 101 / 115 |
| Lifting range [cm]: | 78 / 174 |

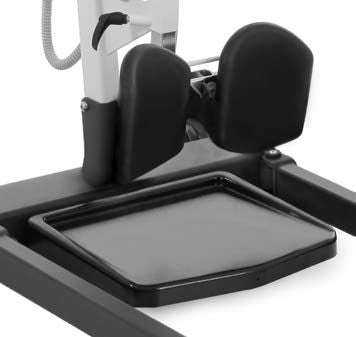

| Foot rest height [cm]: | 9 |

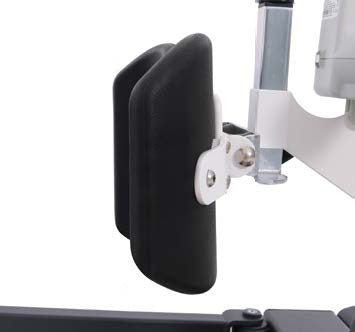

| Tibial suport height adjust. [cm]: | 39 – 52 / 53 – 66 |
| Base legs height [cm]: | 11,5 |
| Wheels diameter [cm]: | 12,5 / 10 |
| Weight [kg]: | 60 |
| Max. lifting capacity [kg]: | 230 |
| Protection level: | IPx4 |
| Remote control: | IPx6 |
| Battery capacity [Ah]: | 2,9 |
| Charger [V/Hz]: | 100-240 / 50 / 60 (wall charger) |
| Emergency stop button/ manual lowering mechanism: |
V |
| Remote control functions: | • up / down • el. leg span adjustment • battery charge status • service indicator • overload indicator |
| Lifting speed without load (rising/lowering) [sec.]: |
18 / 18 |
| Turning radius (min./max.) [cm]: | 124 / 140 |
| Standard set: | • lift • power cord for internal charger • manual |
| Additional accessories: | sling to chose |
Contact for Pricing
