LUNA® X5 Ceiling Lift & Track Systems
An overhead hoist that doesn't need a ceiling
The LUNA® X5 ceiling lift and track systems are designed to make patient transfers safer, smoother, and more dignified — while reducing strain on caregivers and supporting long-term efficiency in care environments.
Whether used in hospitals, nursing homes, or private homes, LUNA® solutions offer flexibility, reliability, and discreet design that integrates seamlessly into everyday care.
Why Choose the LUNA® X5 Ceiling Lift
✅ All-in-One Flexibility
Exceptional Lifting Range
Built to Last
A More Sustainable Choice
Manufactured using a minimum of 75% recycled aluminium, the LUNA® X5 is designed with sustainability in mind, significantly reducing its environmental impact without compromising performance.

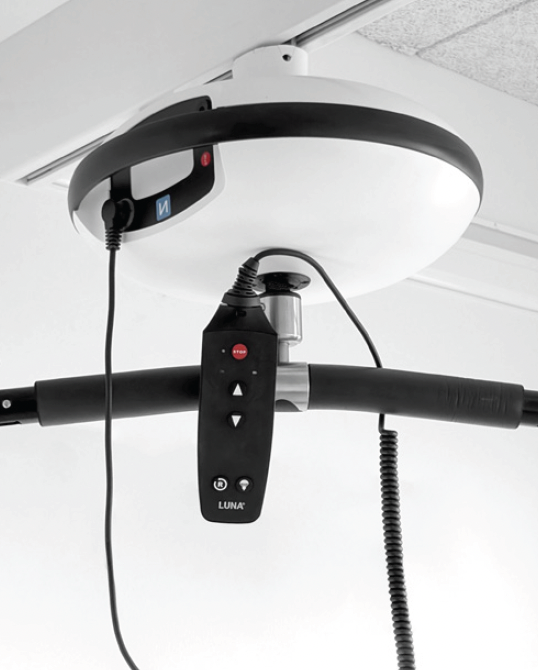

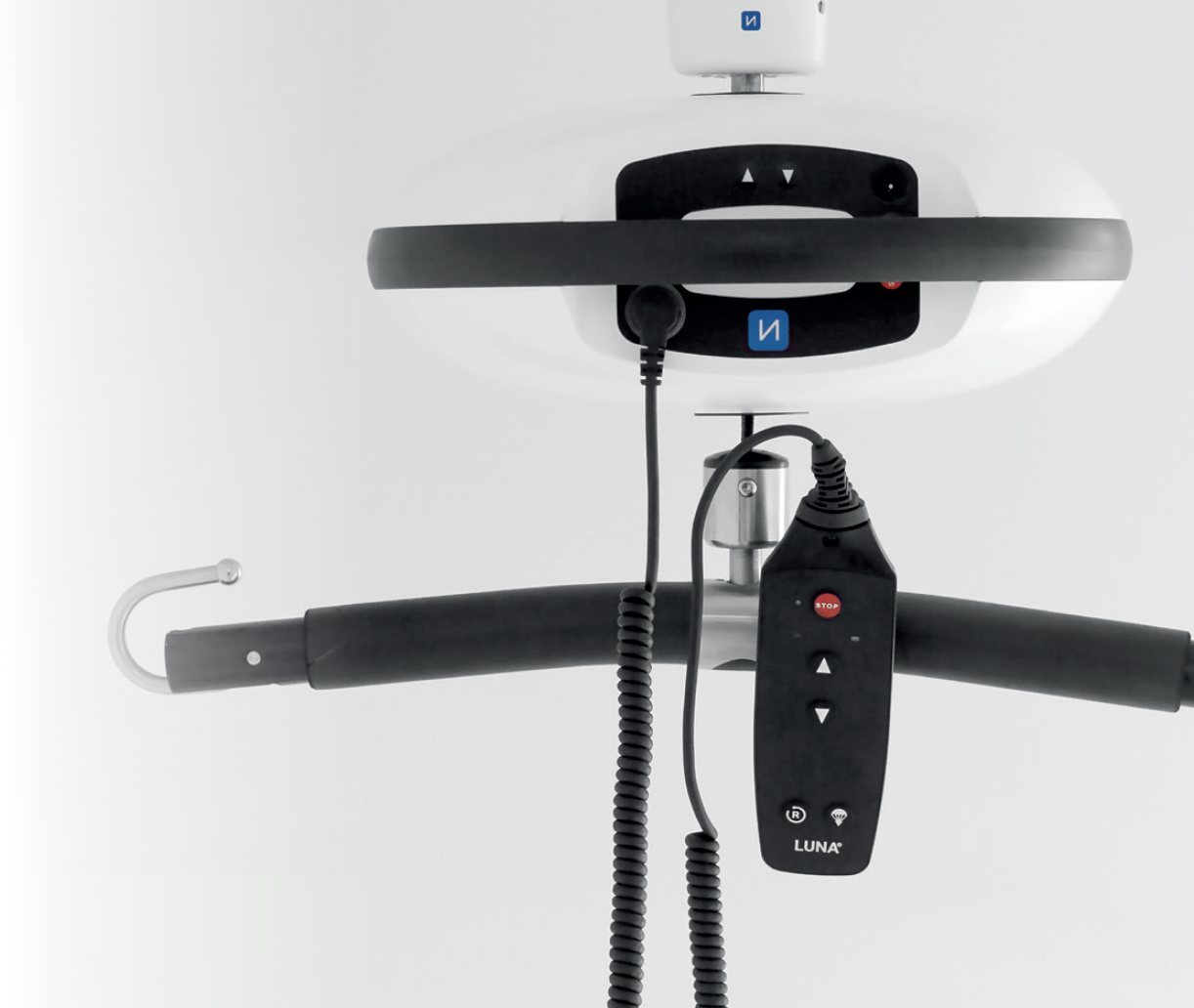

LUNA® X5 Technical Overview
- Lifting capacities: 150 kg / 200 kg / 275 kg
- Lifting range: up to 2500 mm
- Weight: 5.2 kg (without spreader bar)
- Battery: 36V NiMH
- Approx. 85 lifts per full charge (with 90 kg load)
- Noise level: 49–53 dB
- Protection rating: IPX4 (lift), IPX7 (hand control)
- Expected lifetime: up to 20 years or 30,000 lifts
- Warranty: 5 years

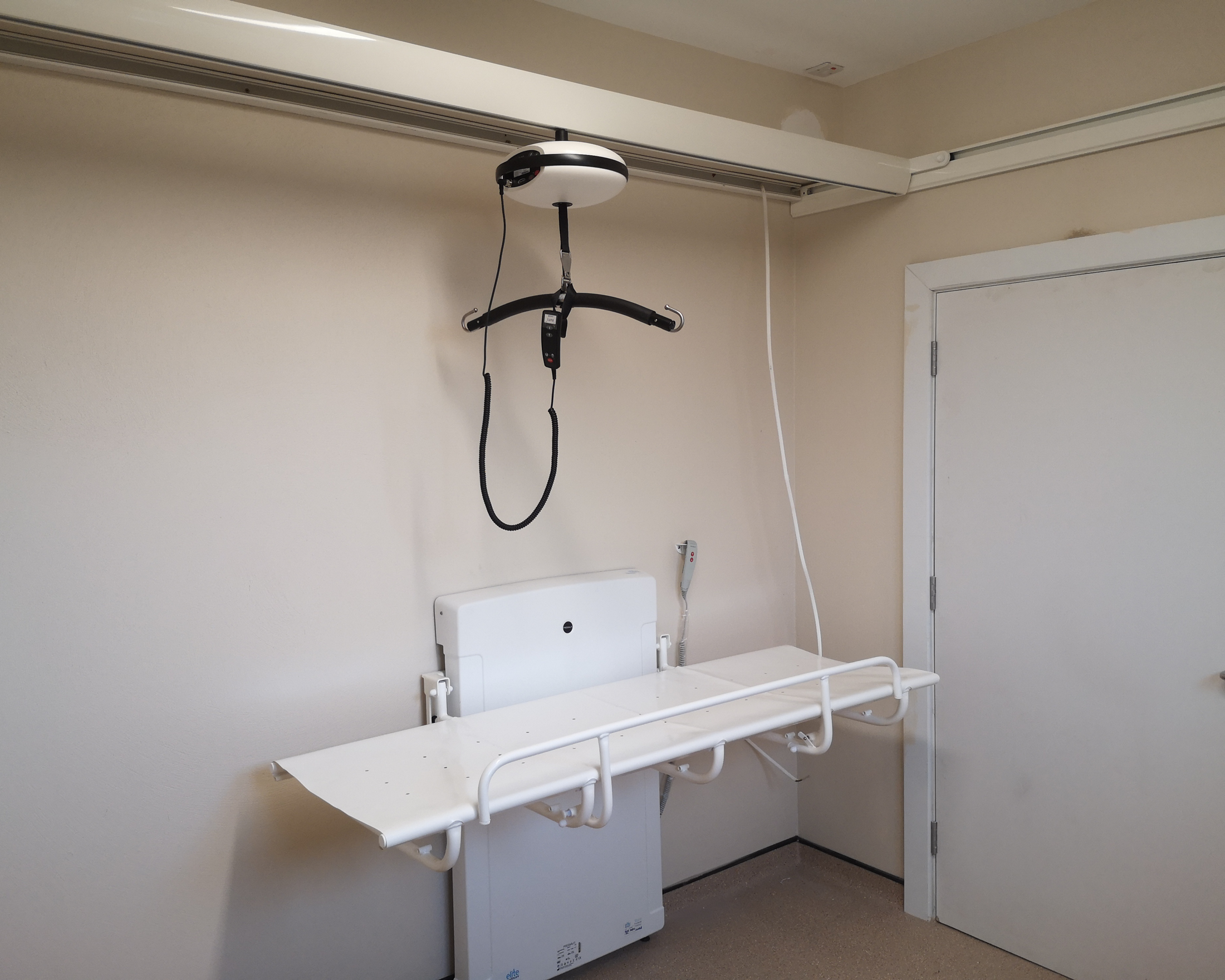

LUNA® Track Systems
Flexible track solutions designed to support safe and efficient patient transfers.

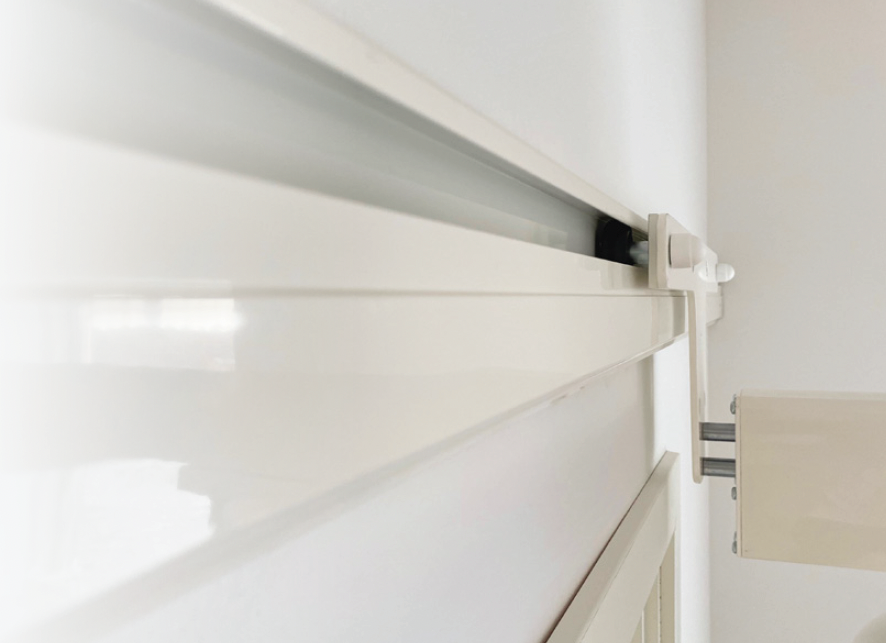

E-Track – Discreet Wall-Mounted Solution
The E-Track is a flat, wall-mounted track designed for environments where ceiling installation isn’t possible. Its clean, discreet design and quick installation make it especially suitable for home care and institutions.
T125 Track – Maximum Span & Continuous Transfer

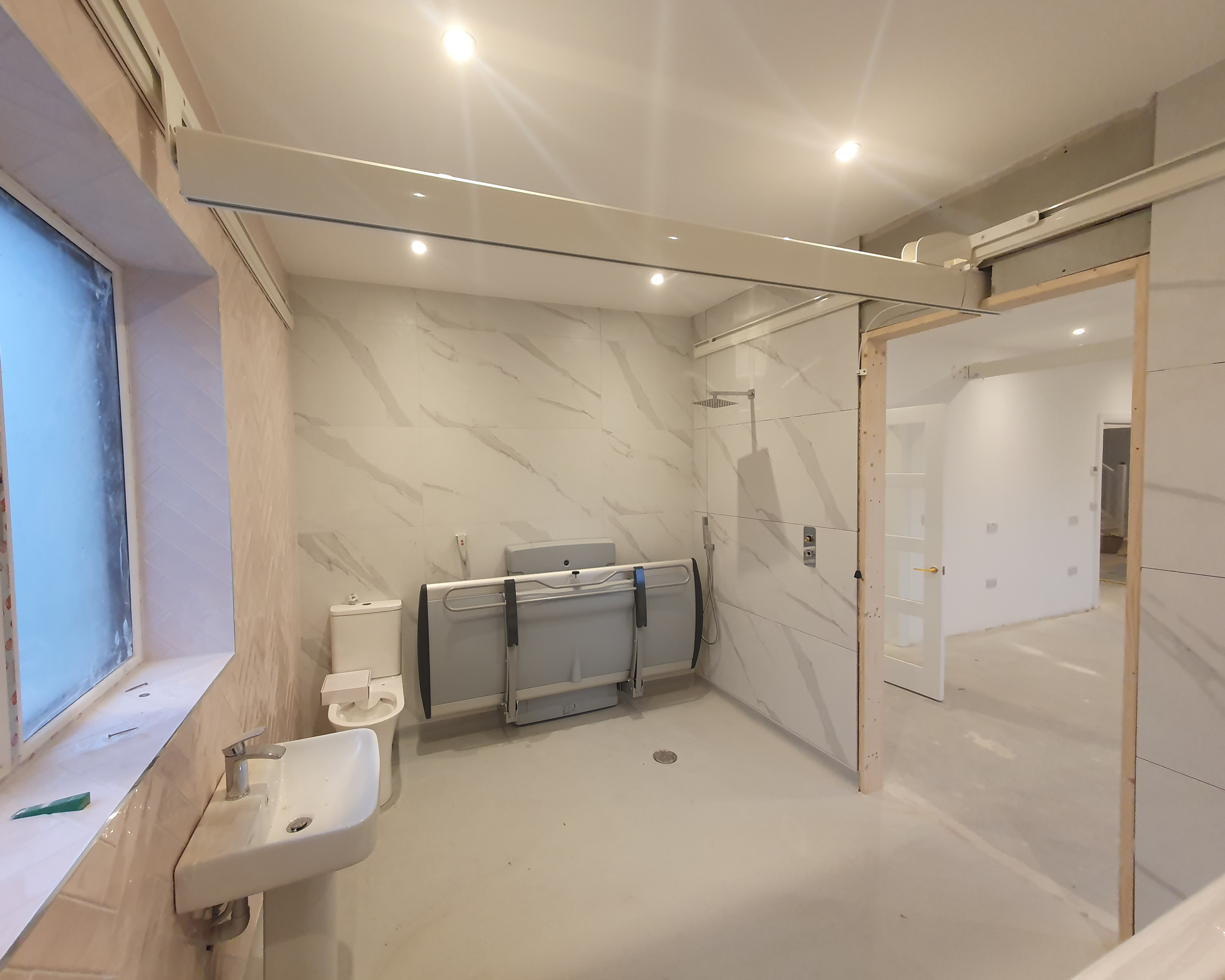

The T125 track provides the largest span in the LUNA® track range, making it ideal for longer runs and continuous transfer solutions. It can be combined with door connectors to allow smooth room-to-room movement.
T85 Track – Low Profile & Versatile
The T85 track features a compact 85 mm profile with excellent strength and span capability.

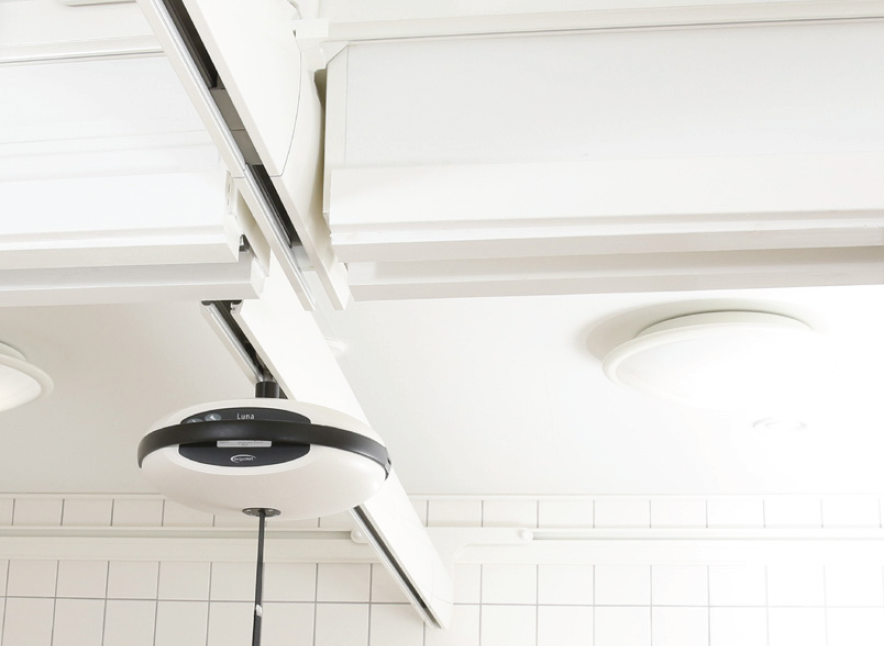

Track System Flexibility & Accessories
LUNA® track systems can be combined and expanded to suit evolving care needs. A full range of accessories is available, including switch tracks, powered turntables, transition gates, and charging stations — allowing you to design a solution that works now and into the future.
Sustainability Built In
All LUNA® tracks are manufactured from recycled aluminium using renewable energy. This significantly reduces carbon emissions and supports a more sustainable approach to patient transfer without compromising strength or performance.
