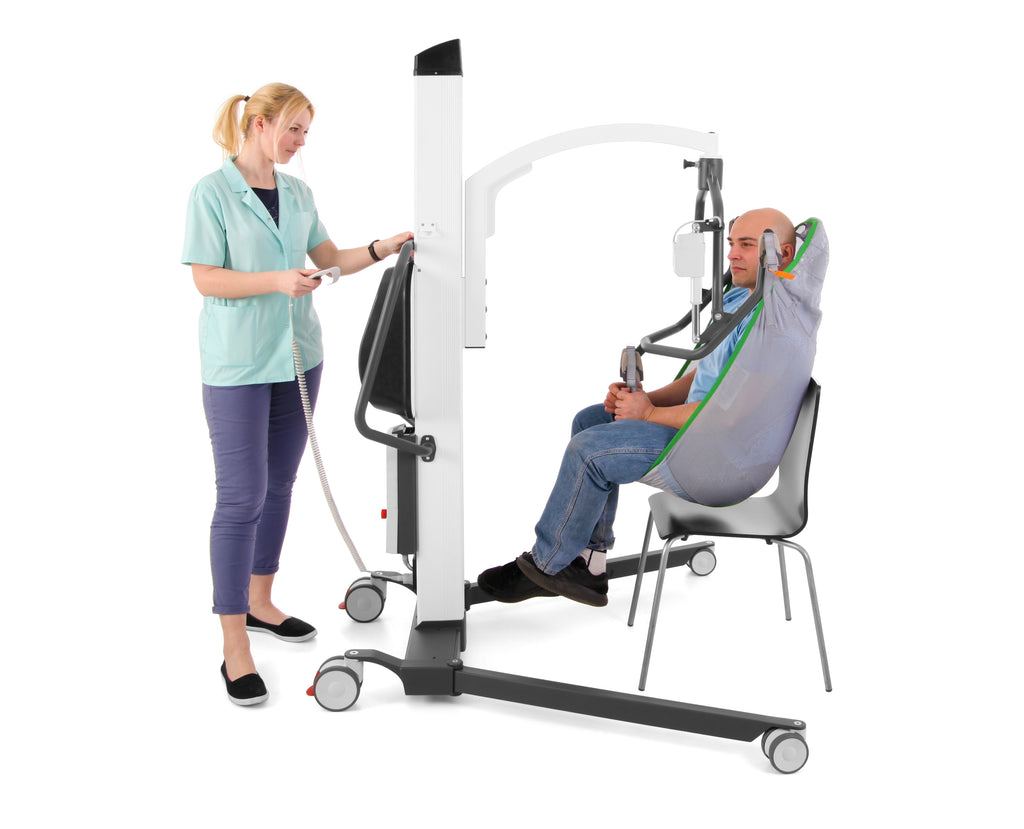

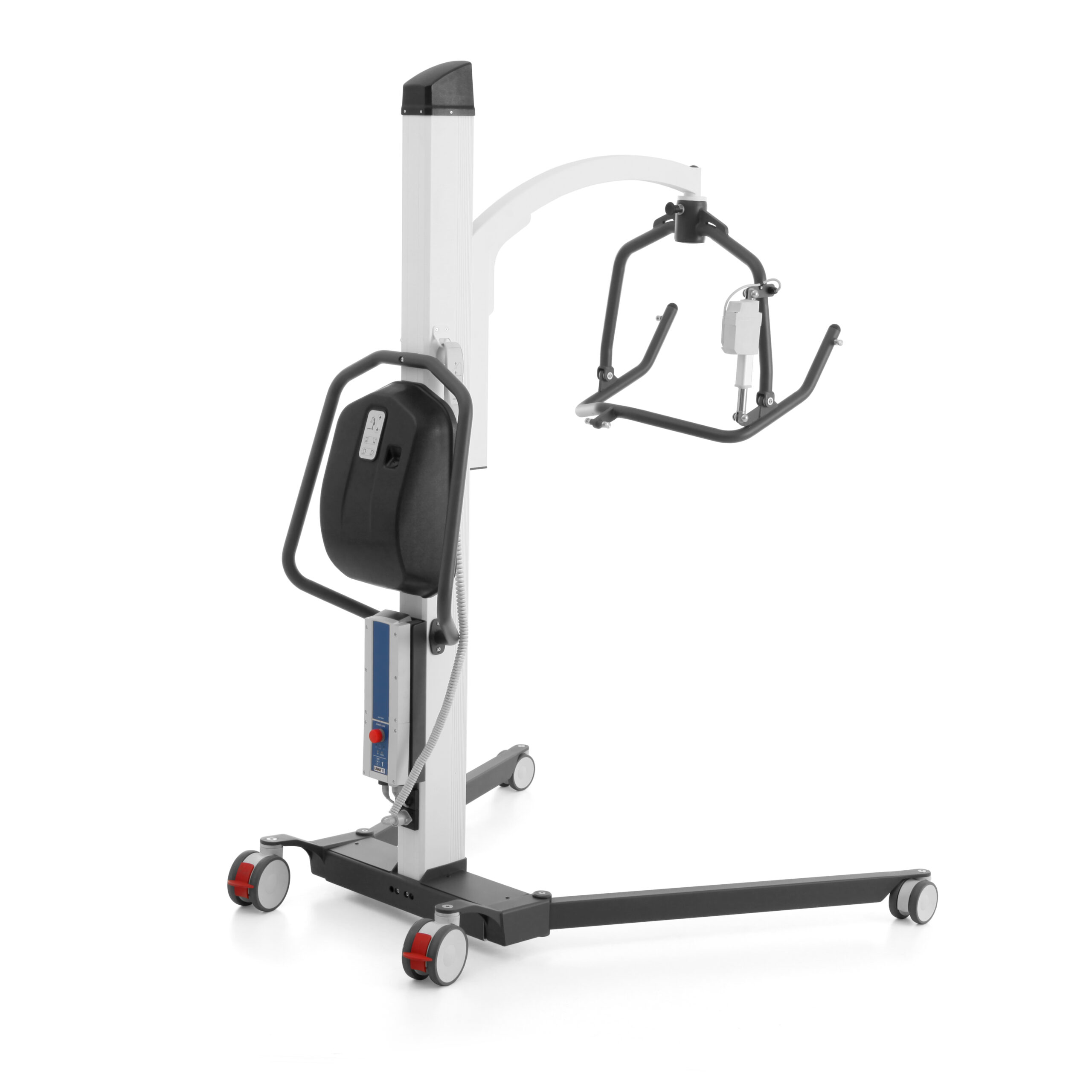

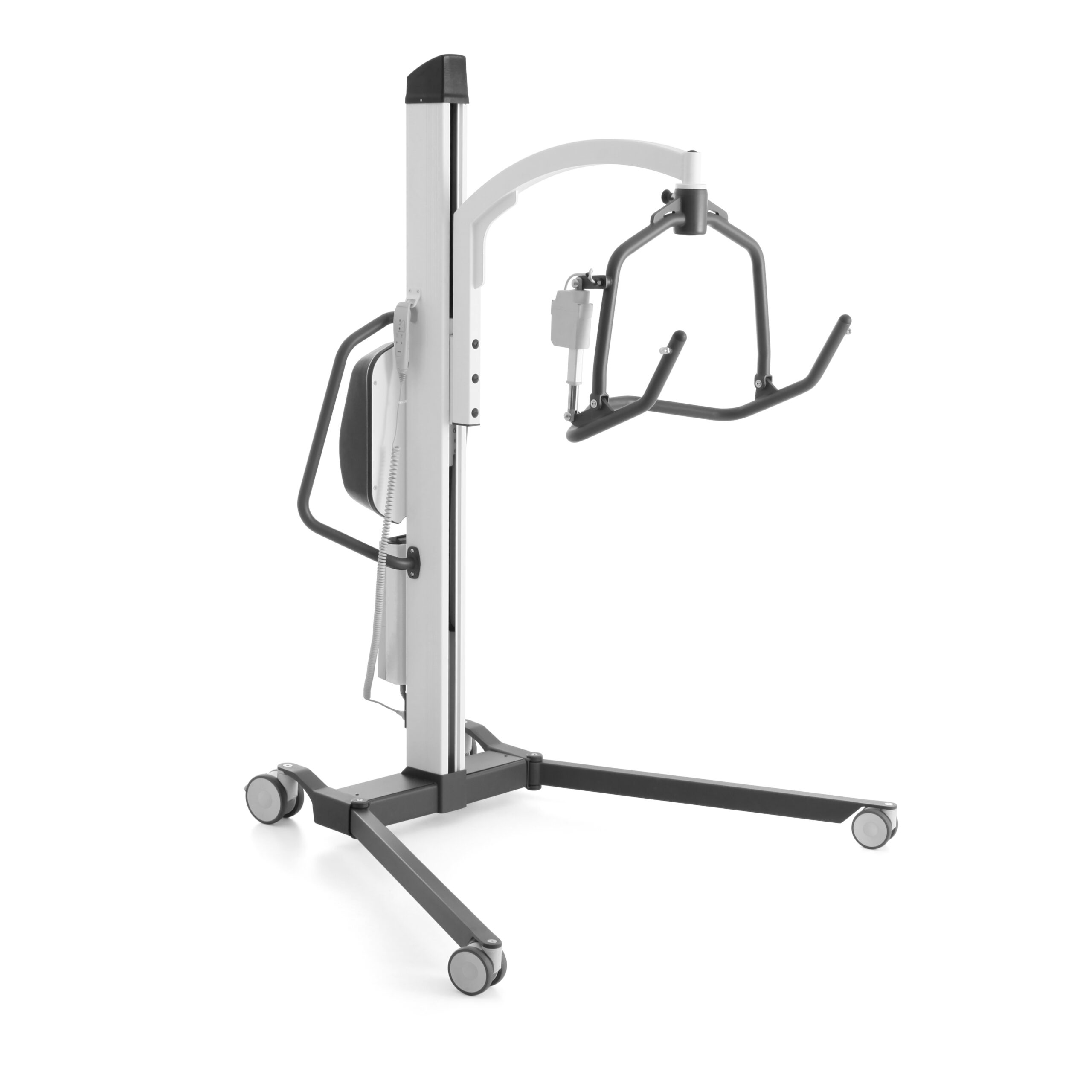

The VertiUp is a 250Kg heavy duty lifter with powered patient positioning. It is compatible with clip slings and is suitable for acute settings.
Technical data:
|
VertiUp |
VertiUp Plus |
| Base legs spreading: |
electrical |
electrical |
| Type of hanger bar: |
electric |
electric |
| Max load [kg]: |
250 |
310 |
| Lenght [cm]: |
135 |
142,8 |
| Width [cm]: |
68,2 |
68 |
| Height [cm]: |
min. 188 / max. 225 |
min. 188 / max. 225 |
| Lifting range [cm]: |
34 - 172,2 |
34 - 172,2 |
| Min. turning radius [cm]: |
76 |
78 |
| Min. base width (int. / ext.) [cm]: |
53,5 / 68,2 |
53,4 / 68 |
| Max. base width (int. / ext.) [cm]: |
125,9 / 140,6 |
132,9 / 144,7 |
| Base legs height [cm]: |
11,3 |
11,1 |
| Wheels diameter [cm]: |
10 / 12,5 |
7,5 / 12,5 |
| Weight [kg]: |
83 |
86 |
| Noise level (max.) [dB] |
55 |
55 |
| Battery capacity [Ah]: |
2,9 |
2,9 |
